SPECS

WHEEL HEIGHT 50m / 164ft

WHEEL DIAMETER 47m / 154ft

MAIN AXLE HEIGHT 26.5 m / 87ft

NUMBER OF SPOKES 18

REVOLUTION TIME 10 - 20 min

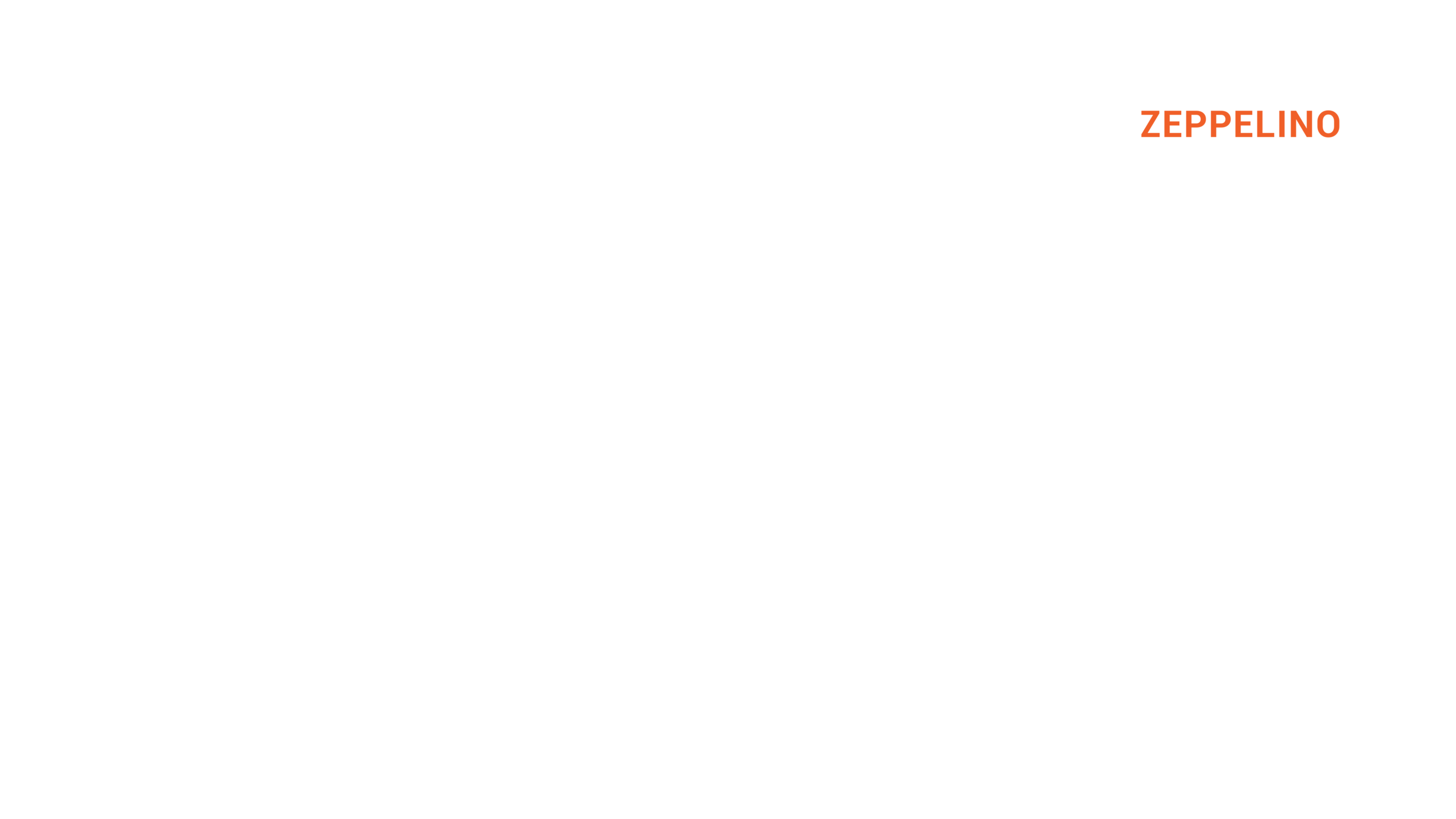

STATIONARY VERSION

NUMBER OF COLUMNS 6 (or 8 column “roughneck version”)

NUMBER OF CABINS 18

FOOTPRINT WIDTH 23 m / 75 ft

FOOTPRINT DEPTH 17 m / 56 ft

DRIVE TYPE 4 x AC motors

POWER REQUIREMENT 400 V, 50/60 Hz, 350 A

SHIPPING MODE 18 x 40 ft ISO containers

GROUND PRESSURE 200 kN/m²

All values are approximate and subject to change.

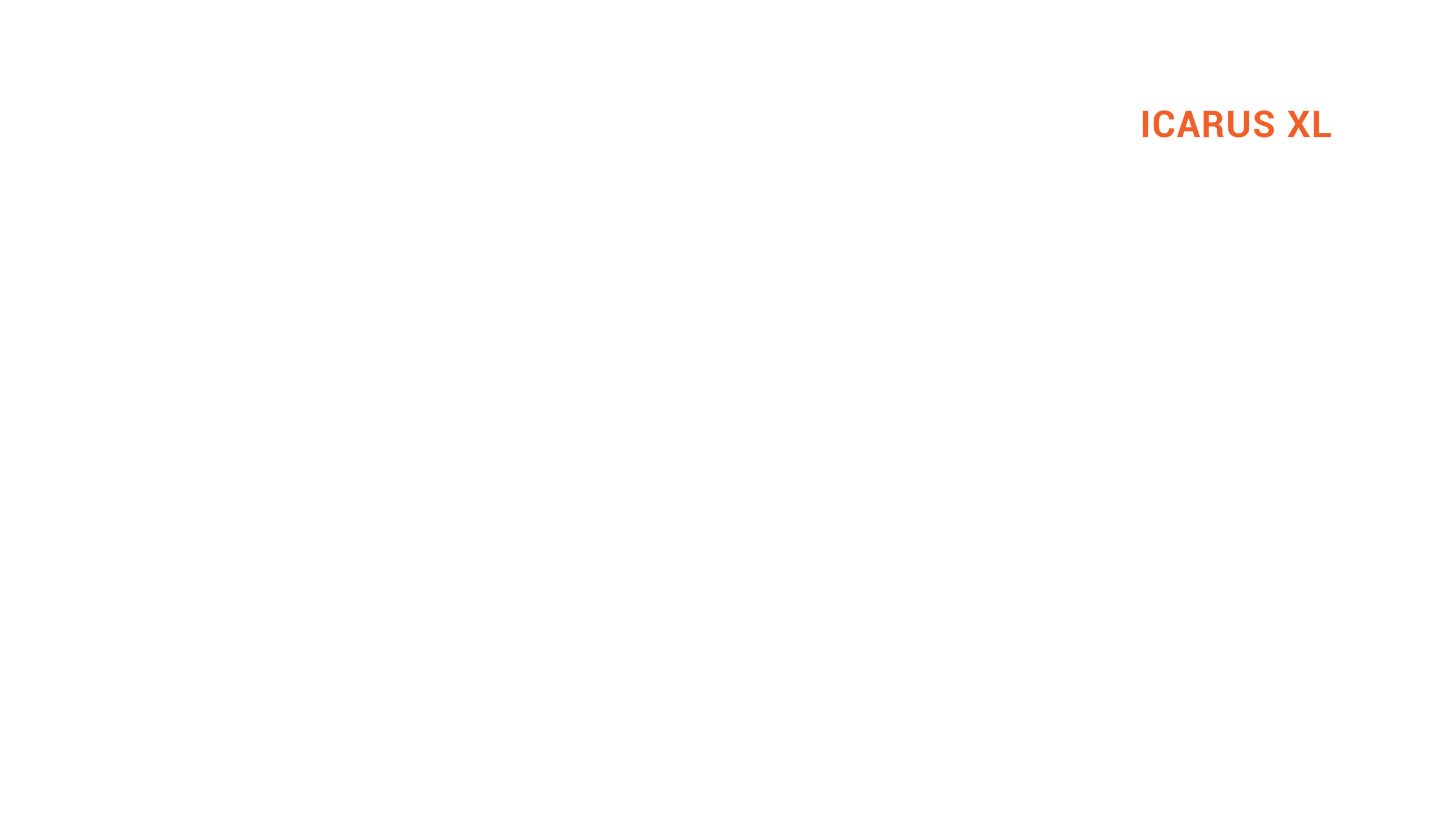

SEMI-PORTABLE VERSION

NUMBER OF COLUMNS 8

NUMBER OF CABINS 36

FOOTPRINT WIDTH 21.5 m / 71 ft

FOOTPRINT DEPTH 20 m / 66 ft

DRIVE TYPE 4 x AC motors

POWER REQUIREMENT 400 V, 50/60 Hz, 250 A

SHIPPING MODE 20 x 40 ft ISO containers

GROUND PRESSURE 200 kN/m²

All values are approximate and subject to change.
