SPECS

WHEEL HEIGHT 40m / 131ft

WHEEL DIAMETER 37m / 121ft

MAIN AXLE HEIGHT 21.5 m / 71ft

NUMBER OF SPOKES 15

REVOLUTION TIME 8 - 16 min

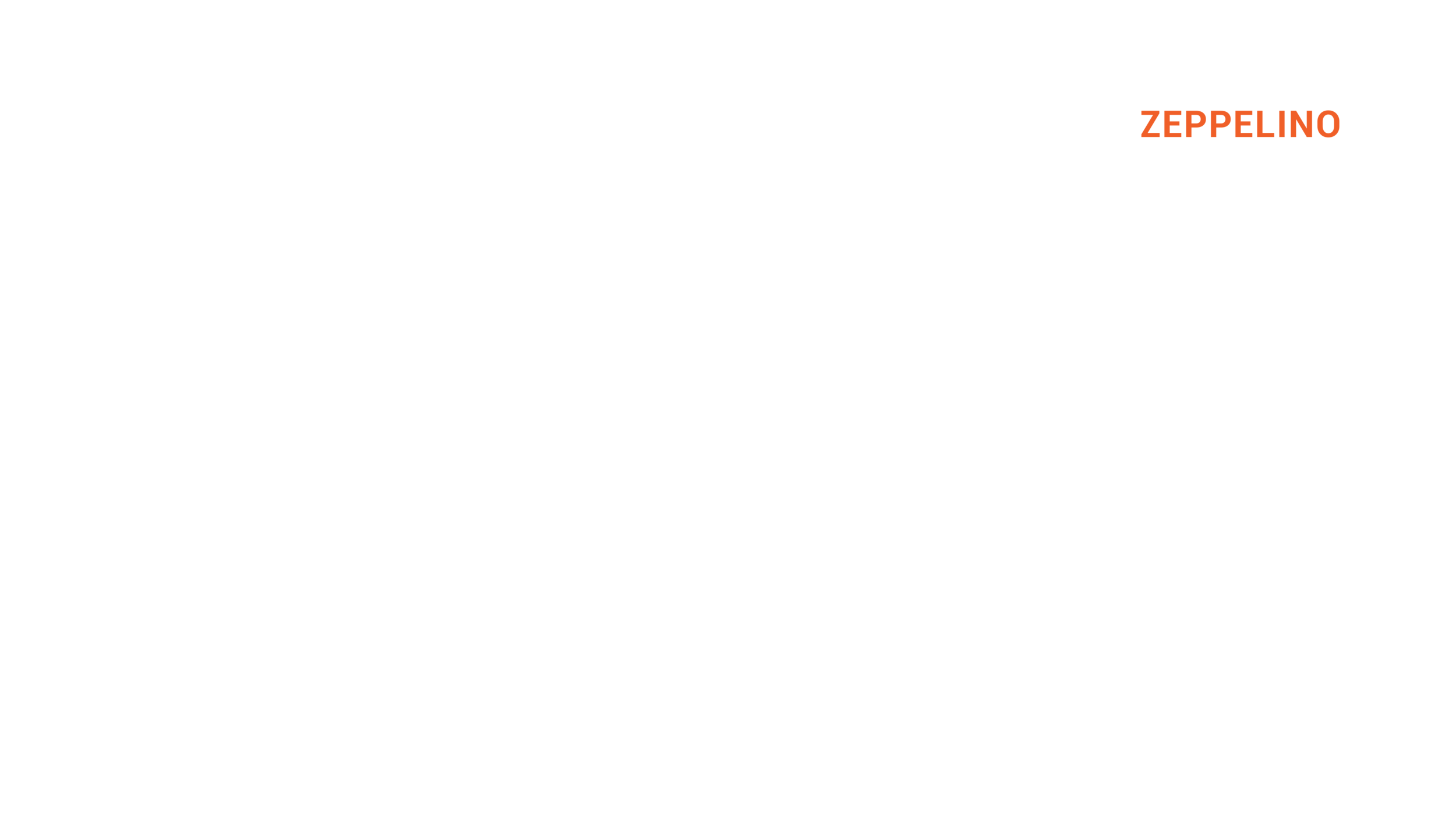

STATIONARY VERSION

NUMBER OF COLUMNS 6 (or 8 column “roughneck version”)

NUMBER OF CABINS 15

FOOTPRINT WIDTH 20 m / 66 ft

FOOTPRINT DEPTH 16 m / 52 ft

DRIVE TYPE 4 x AC motors

POWER REQUIREMENT 400 V, 50/60 Hz, 250 A

SHIPPING MODE 13 x 40 ft ISO containers

GROUND PRESSURE 200 kN/m²

All values are approximate and subject to change.

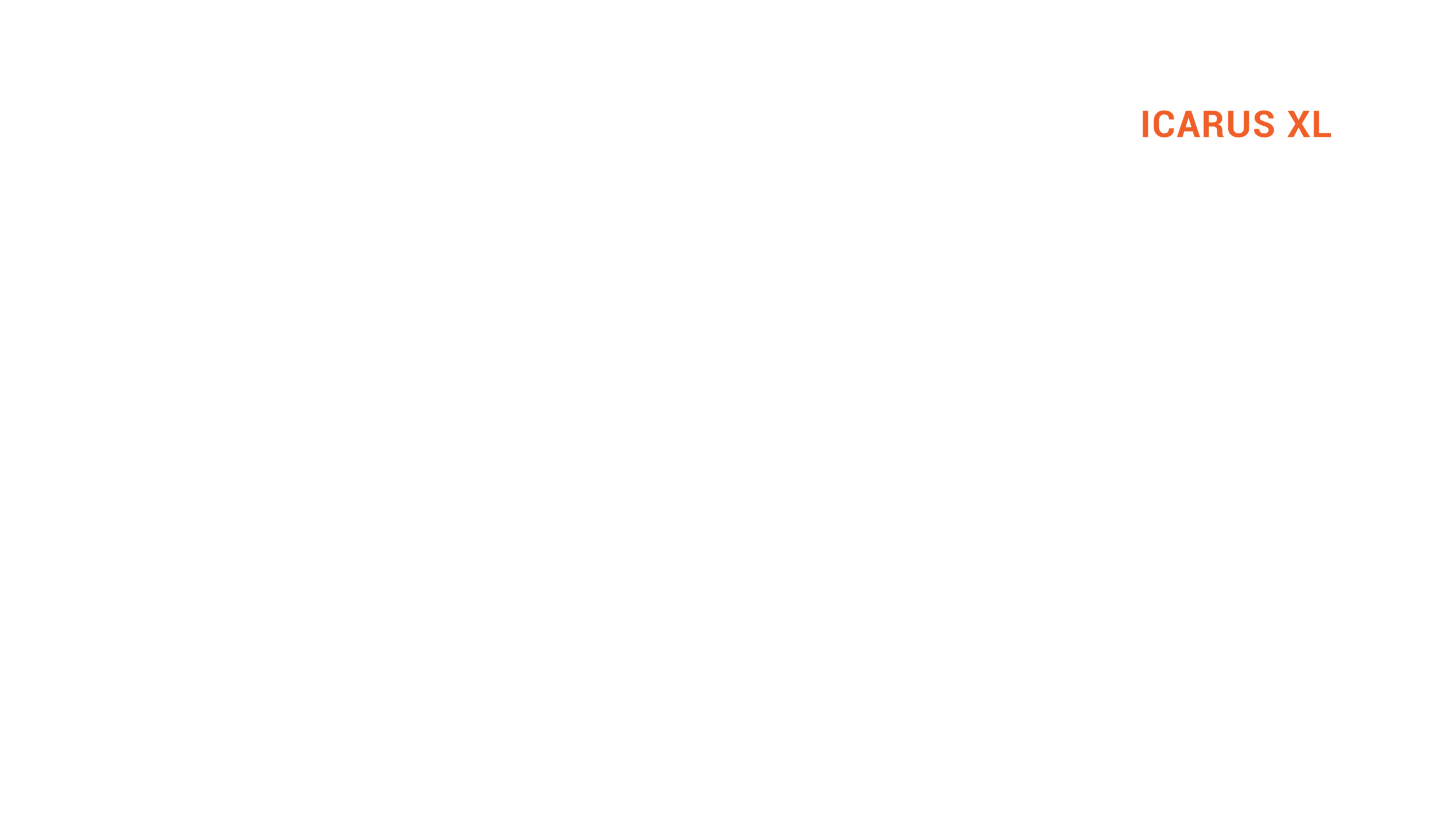

SEMI-PORTABLE VERSION

NUMBER OF COLUMNS 8

NUMBER OF CABINS 30

FOOTPRINT WIDTH 18.5 m / 61 ft

FOOTPRINT DEPTH 17 m / 56 ft

DRIVE TYPE 4 x AC motors

POWER REQUIREMENT 400 V, 50/60 Hz, 250 A

SHIPPING MODE 15 x 40 ft ISO containers

GROUND PRESSURE 200 kN/m²

All values are approximate and subject to change.
